CMM750-520 Plastic Machine Thermoforming and Thermoplastics
Application

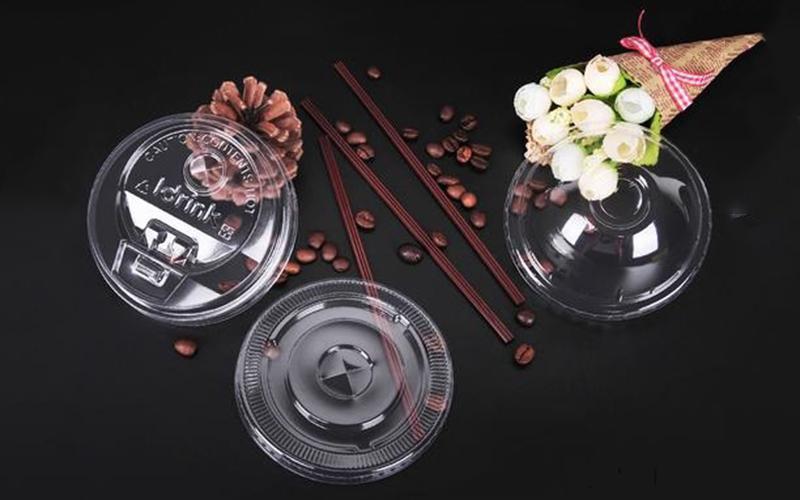

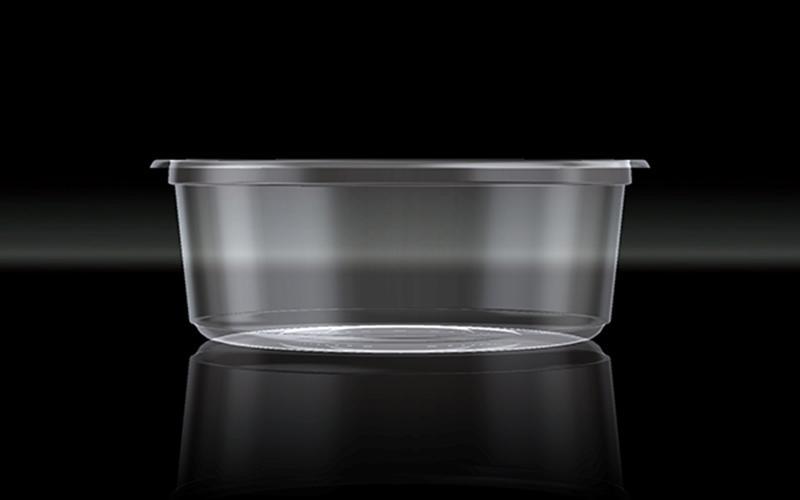

This CMM750-520 plastic machine thermoforming and thermoplastics has a maximum formed area of 750 x 450mm and its primary purpose is the processing and forming of plastic sheets that will be turned into disposable plastic bowls, drinking cups, ice cream cups, jelly cups and other plastic packaging and containers. The suitable materials include PP, PE, PS, PET, HIPS, PVC and other degradable materials.
Production technique
This plastic thermoforming machine is made up of is made up of the sheet loader, main machine, winding frame and electrical control cabinet.
The process includes:
Sheet loading → Heating → Stretch forming → Cutting → Finished product blowing
| Main Motor Power | 15kw |
| Formed Area | ≤750*450mm |
| Formed Depth | ≤180mm |
| Formed Speed | ≤35time/min |
| Sheet Width | ≤750mm(adjustable) |
| Sheet Thickness | 0.2-2.5mm |
| Machine Power | ≤110kw(the actual is about 60％) |
| Air Pressure | ≤0.6-0.8Mpa |
| Gas Consumption | 3.0-3.5m³/min |
| Water Consumption | ≤0.5m³/24h |
| Size (L*W*H) | 4.3*1.6*2.6m |
ELITE Plastics is manufacturing plastic forming and sheet extrusion equipment, such as sheet extrusion line for various plastic materials like PE, PPT, PS, PET, etc. and offers the custom thermoplastic machines and thermoforming equipment and other plastic thermoforming machines. With almost 20 years experiences of manufacturing plastic machines, ELITE Plastics can provide any client good plastic thermoplastic and extrusion machines.
Index
thermoforming equipment, plastic forming machine, polystyrene thermoforming, polypropylene thermoplastics, polyethylene thermoforming, PET thermoplastics
