Plastic Sheet, Vertical 3-Rolled Sheet Extrusion LineThe SLSE series vertical 3-rolled sheet extrusion line is specially designed for the production of PP, PE, PS, HIPS, and other plastic sheet products. The equipment features a maximum extrusion capacity of 350kg/h. By adopting the vertical 3-rolled structure, the contact area between the roller and sheet is optimized. This improves that cooling effect, resulting in a more transparent finished product. This extrusion line is particularly suited for processing thicker sheet with a thickness of more than 1mm.
Plastic Sheet, Inclined 3-Rolled Plastic Sheet Extrusion LineThe SLSE series inclined 3-rolled plastic sheet extrusion line was designed to meet market demands. It is especially suited for the handling of PP, PE, PS, HIPS, and other plastic sheet products. The extruder has a maximum extrusion capacity of 350kg/h. After calendering by the 3-roller equipment and inclined to 45 degrees, this equipment is suitable for processing sheet with a thickness range of 0.2-1.0mm.
Plastic Sheet, Volumetric Inclined 3-Rolled Sheet Extrusion LineThe SLSE series volumetric inclined 3-rolled sheet extrusion line was developed by our engineers to handle materials such as PP, PE, PS, HIPS, and other plastic sheet products. The volumetric sheet extrusion unit can be outfitted with a measuring pump, PLC control system, 3-roller independent control system, 3-roller tank, and other high quality accessories from Siemens, SMC, JCTIMES, and other well-known brands.
Plastic Sheet, Three Layer Plastic Sheet Co-extrusion LineThe plastic sheets processed by this three layer sheet co-extrusion line can be used for producing cup making machines, thermoplastic forming machines, flip molding machines, multi-station forming machine and other plastic thermoforming equipment, which are used for producing multicolor plastic packaging products like beverage cups, bowls, etc.
Plastic Sheet, Volumetric 3 Layer Sheet Co-extrusion LineThe MLSE series volumetric 3 layer plastic sheet co-extrusion line specializes in the mass-production of plastic sheets out of PP, PE, PS, HIPS, and other materials. This equipment can simultaneously extrude 3 layers of sheets, with a maximum extrusion capacity of 450kg/h. The composite distributor matches with the extrusion die to make different plastic raw materials that are combined in a uniform and stable manner.
Parameters
1. The screw and barrel of our plastic sheet extrusion equipment are made from high quality alloy steel treated with nitrogen. This provides an added level of hardness, corrosion resistance, and they are designed for a service life of over ten years.
2. The screw of large length and diameter ratio enhances the plasticizing effect, coupled with the roller with large diameter to create an excellent cooling effect. Produced sheet is highly transparent and uniform, with the error rate minimized to ±1.5%.
3. The hydraulic winding system is of German design, and the winded sheet can reach 1.5 tons per roll. Compared with the traditional winding method, it significantly reduces cost and labor.
4. This series of plastic sheet machine features an incredibly high output as it can produce over 7.5 tons of finished products per day.
5. The liquid flow channel inside the die adopts “hanger design”, which makes the melted raw materials evenly flow from the screw to the die to ensure that the sheets have a smooth surface.
6. The temperature of die exchanger is adjusted by stage, the temperature of the roller is controlled by 3-way automatic temperature control system, and the circulating water has an outstanding cooling effect, making the finished sheet highly transparent.
7. All of the driving device run synchronously.
8. The thickened racks and wallboards are latch assembled rather than welded to ensure the machine operates stably.
Screw

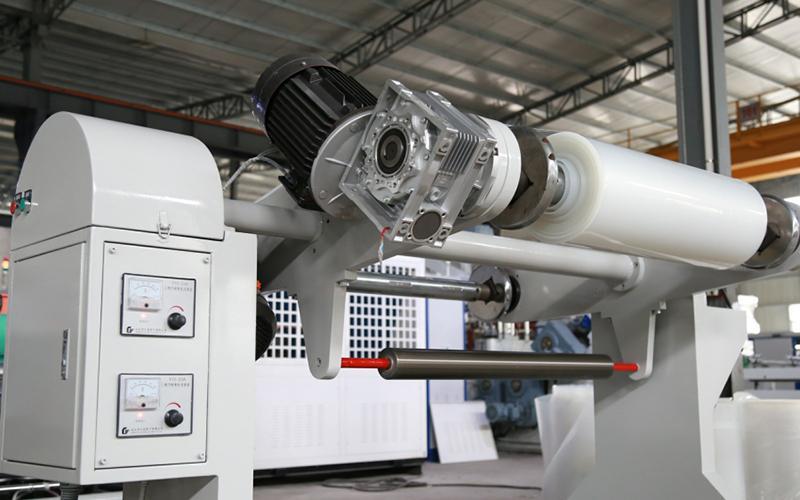

Winding system

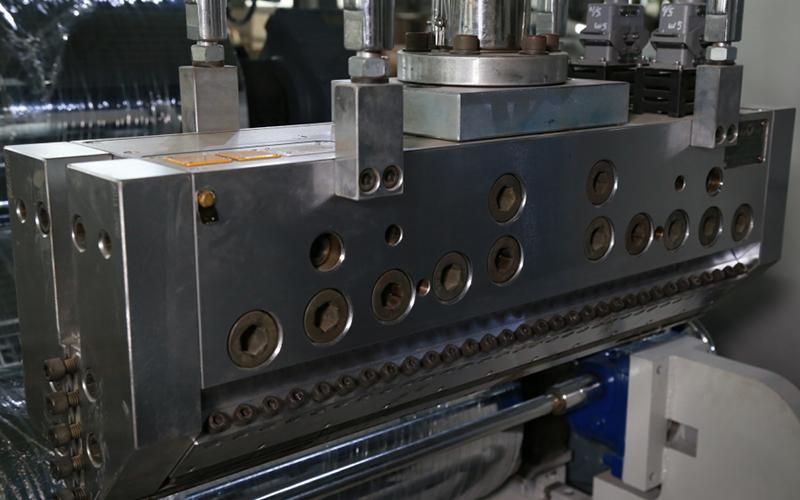

Extrusion die

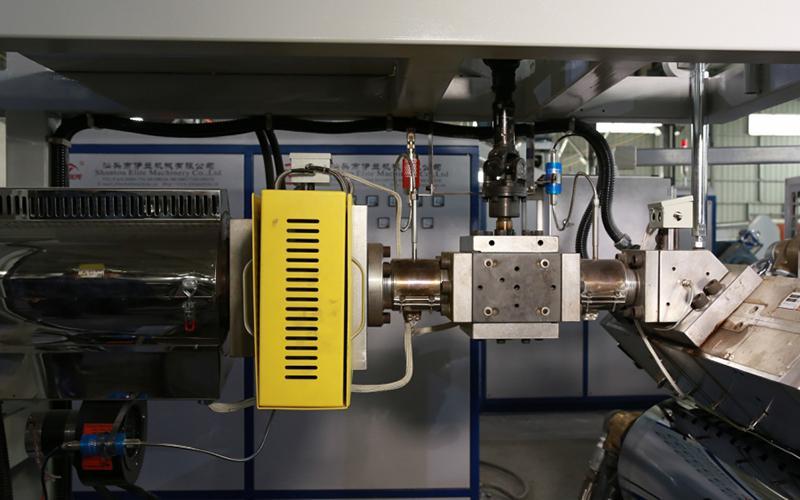

Screen exchanger and measuring pump

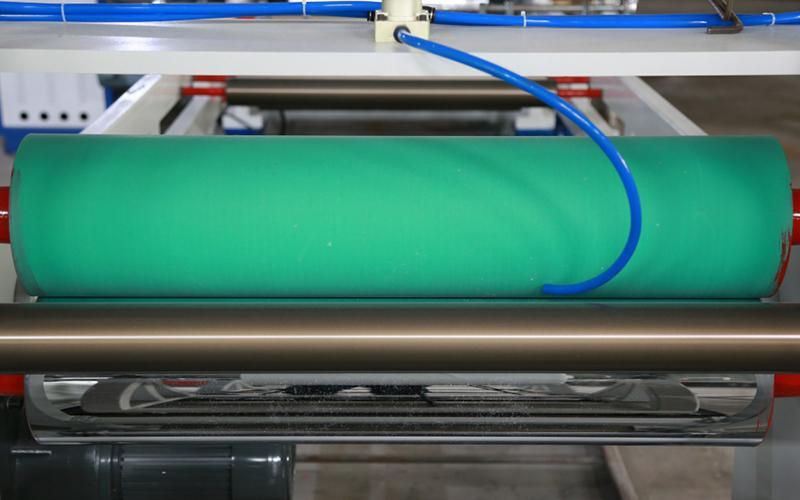

Traction system
Technical support
1. The whole machine design meets international safety standards, and the CE certificate can be applied as required.
2. As for specific customer needs, this equipment can be modified accordingly. Our senior engineer can offer professional advice for reference.
3. This plastic extrusion machine is of easy maintenance, and our professional technician can come to your factory to debug, install, train and guide, as well as offer after-sales service.
4. The whole machine is guaranteed for one year and the electrical components are guaranteed for 6 months.
