CMM700-360 Plastic Machine Thermoforming and Thermoplastics
Application

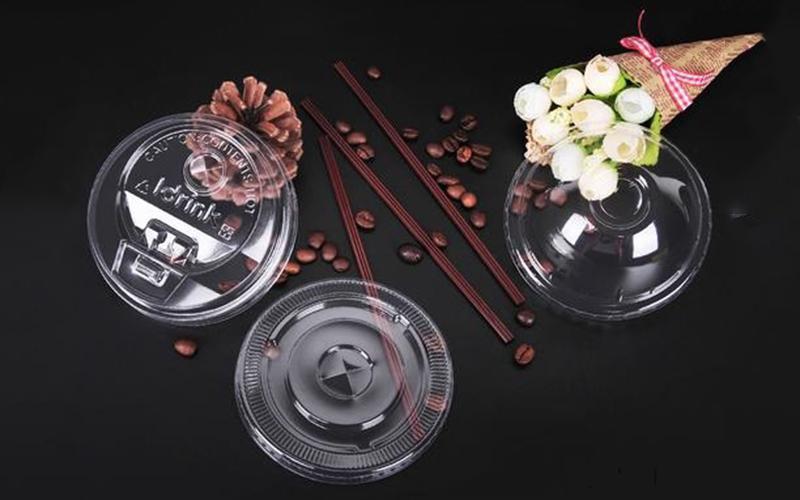

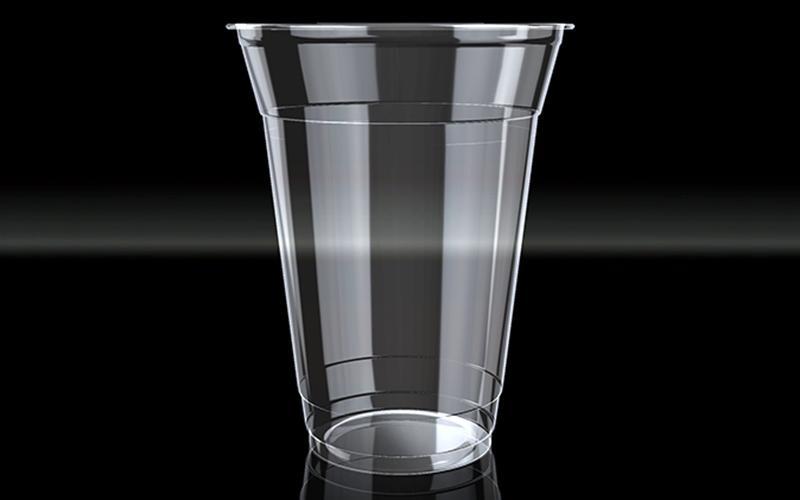

The CMM700-360 plastic thermoforming and thermoplastics machine, with a maximum formed area of 700 x 300mm, is primarily used for processing plastic sheets and the production of disposable plastic bowls, drinking cups, ice-cream cups, jelly cups and other packaging or containers. Primary materials used include PP, PE, PS, PET, HIPS, PVC and other degradable materials.
Production technique

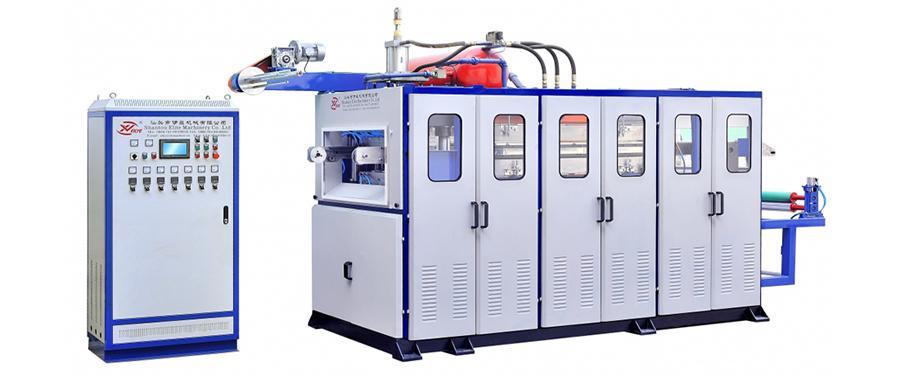

This plastic thermoforming machine is made up of the sheet loader, main machine, winding frame, and electrical control cabinet.
The process includes:
Sheet loading → Heating → Stretch forming → Cutting → Finished product blowing
| Main Motor Power | 7.5kw |
| Formed Area | ≤700*300mm |
| Formed Speed | ≤35time/min |
| Sheet Width | ≤700mm(adjustable) |
| Sheet Thickness | 0.2-2.5mm |
| Machine Power | ≤100kw (the actual is about 60％) |
| Air Pressure | ≤0.6-0.8Mpa |
| Gas Consumption | 1.5-2.0m³/min |
| Water Consumption | ≤0.5m³/24h |
| Size (L*W*H) | 3.5*1.5*2.5m |
Optional models
1.
2.
ELITE Plastics is manufacturing plastic forming and sheet extrusion equipment, such as sheet extrusion line for various plastic materials like PE, PPT, PS, PET, etc. and offers the custom thermoplastic machines and thermoforming equipment and other plastic thermoforming machines. With almost 20 years experiences of manufacturing plastic machines, ELITE Plastics can provide any client good plastic thermoplastic and extrusion machines.
Index
thermoforming equipment, plastic forming machine, polyethylene thermoforming, polypropylene thermoplastics, polystyrene thermoforming, HIPS thermoforming
