Plastic Sheet, Three Layer Plastic Sheet Co-extrusion Line

Plastic Sheet, Three Layer Plastic Sheet Co-extrusion Line
Plastic Sheet, Three Layer Plastic Sheet Co-extrusion Line

Application
The MLSE series three layer plastic sheet co-extrusion line is carefully developed for processing PP, PE, PS, HIPS, and other plastic sheets materials. It can extrude 3 layers of sheet at a single time with a maximum extrusion capacity of 450kg/h. The equipment features excellent efficiency and power.

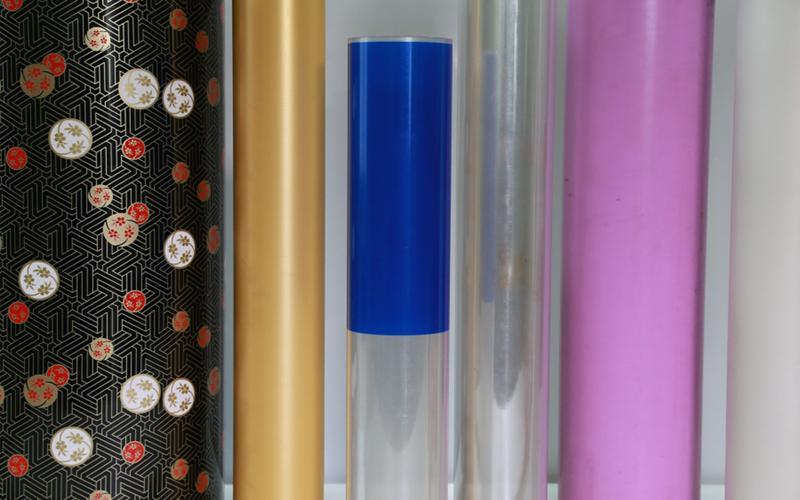

The plastic sheets processed by this three layer sheet co-extrusion line can be used for producing cup making machines, thermoplastic forming machines, flip molding machines, multi-station forming machine and other plastic thermoforming equipment, which are used for producing multicolor plastic packaging products like beverage cups, bowls, etc.

Production technique

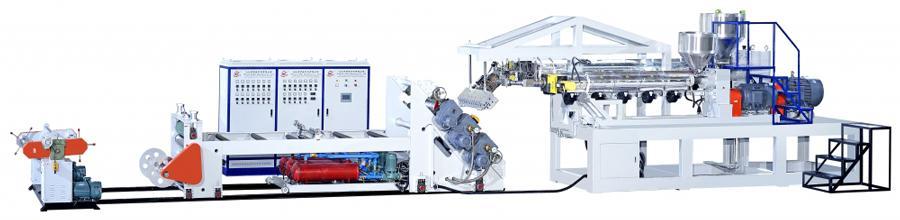

This three layer plastic sheet co-extrusion line is made up of an extrusion machine, 3-rolled calender, traction winder and electrical control cabinet.

The process includes:
Feeding → Heating → Extrusion → Calendering → Cooling → Winding

Technical parameter
MLSE 90/50 800 A, B, C Co-extrusion line
Sheet width Sheet thickness Screw diameter Length-diameter ratio of the screw Main motor power Maximum output Total power Size (L*W*H)
≤700mm 0.2-2.0mm Φ90mm,Φ50mm 35:1 55kw, 15kw 200kg/h 110kw 13.0*2.0*3.0m
MLSE100/70 900 A, B, C Co-extrusion line
Sheet width Sheet thickness Screw diameter Length-diameter ratio of the screw Main motor power Maximum output Total power Size (L*W*H)
≤800mm 0.2-2.0mm Φ100mm,Φ70mm 35:1 75kw, 22kw 280kg/h 150kw 14.0*2.0*3.2m
MLSE110/80 900 A, B, C Co-extrusion line
Sheet width Sheet thickness Screw diameter Length-diameter ratio of the screw Main motor power Maximum output Total power Size (L*W*H)
≤800mm 0.2-2.0mm Φ110mm,Φ80mm 35:1 90kw, 37kw 350kg/h 200kw 15.0*2.1*3.2m
MLSE120/90 1000 A, B, C Co-extrusion line
Sheet width Sheet thickness Screw diameter Length-diameter ratio of the screw Main motor power Maximum output Total power Size (L*W*H)
≤900mm 0.2-2.0mm Φ120mm, Φ90mm 35:1 110kw, 55kw 450kg/h 250kw 16.0*2.2*3.5m

ELITE Plastics is manufacturing plastic forming and sheet extrusion equipment, such as sheet extrusion line for various plastic materials like PE, PPT, PS, PET, etc. and offers the custom thermoplastic machines and thermoforming equipment and other plastic thermoforming machines. With almost 20 years experiences of manufacturing plastic machines, ELITE Plastics can provide any client good plastic thermoplastic and extrusion machines.
