Plastic Sheet, Inclined 3-Rolled Plastic Sheet Extrusion Line

Plastic Sheet, Inclined 3-Rolled Plastic Sheet Extrusion Line

Application
The SLSE series inclined 3-rolled plastic sheet extrusion line was designed to meet market demands. It is especially suited for the handling of PP, PE, PS, HIPS, and other plastic sheet products. The extruder has a maximum extrusion capacity of 350kg/h. After calendering by the 3-roller equipment and inclined to 45 degrees, this equipment is suitable for processing sheet with a thickness range of 0.2-1.0mm.

The sheets mass-produced using this sheet extrusion machine can be used in cup making machines, thermoplastic forming machines, flip molding machines, multi-station forming machines, and other plastic thermoforming equipment. Those machines are used in the production of disposable plastic cups, beverage cups, ice cream cups, jelly cups, and other packaging products.

Plastic Sheet, Inclined 3-Rolled Plastic Sheet Extrusion Line

Production technique

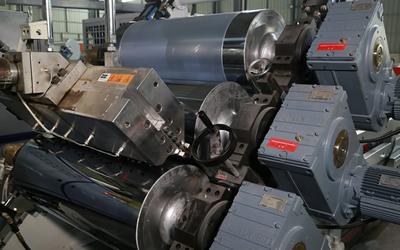

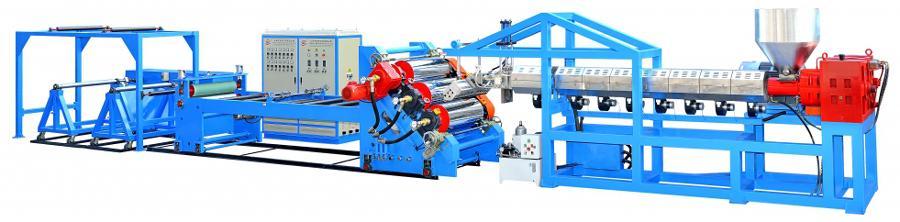

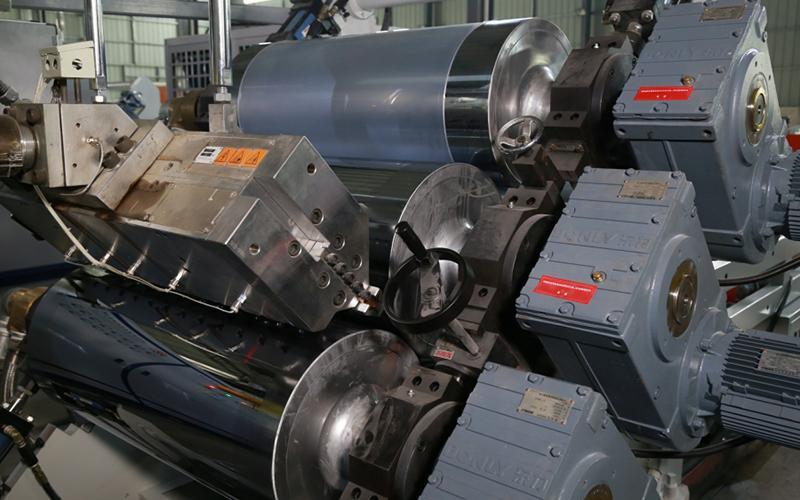

This inclined 3-rolled sheet extrusion line consists of an extrusion machine, 3-rolled calender, traction winder and electrical control cabinet.

The process includes:
Feeding → Heating → Extrusion → Calendering → Cooling → Winding

Technical parameter
SLSE 90-800 Extrusion Line
Used material Sheet effective width Sheet thickness Length-diameter ratio of the screw Main motor power Maximum extrusion capacity Total power Size (L*W*H)
PP,PS,HIPS,PE ≤750mm 0.2-2.0mm 33:1 45kw 150kg/h 90kw 12*2.0*3.5m
SLSE 100-800 Extrusion Line
Used material Sheet effective width Sheet thickness Length-diameter ratio of the screw Main motor power Maximum extrusion capacity Total power Size (L*W*H)
PP,PS,HIPS,PE ≤750mm 0.2-2.0mm 33:1 55kw 200kg/h 120kw 13*2.1*3.5m
SLSE 110-800 Extrusion Line
Used material Sheet effective width Sheet thickness Length-diameter ratio of the screw Main motor power Maximum extrusion capacity Total power Size (L*W*H)
PP,PS,HIPS,PE ≤750mm 0.2-2.0mm 33:1 75kw 250kg/h 150kw 14*2.1*3.5m
SLSE 120-800 Extrusion Line
Used material Sheet effective width Sheet thickness Length-diameter ratio of the screw Main motor power Maximum extrusion capacity Total power Size (L*W*H)
PP,PS,HIPS,PE ≤750mm 0.2-2.0mm 33:1 90kw 350kg/h 180kw 15*2.2*4.0m

ELITE Plastics is manufacturing plastic forming and sheet extrusion equipment, such as sheet extrusion line for various plastic materials like PE, PPT, PS, PET, etc. and offers the custom thermoplastic machines and thermoforming equipment and other plastic thermoforming machines. With almost 20 years experiences of manufacturing plastic machines, ELITE Plastics can provide any client good plastic thermoplastic and extrusion machines.
